Foscam FNA108HE

Never Miss A Moment

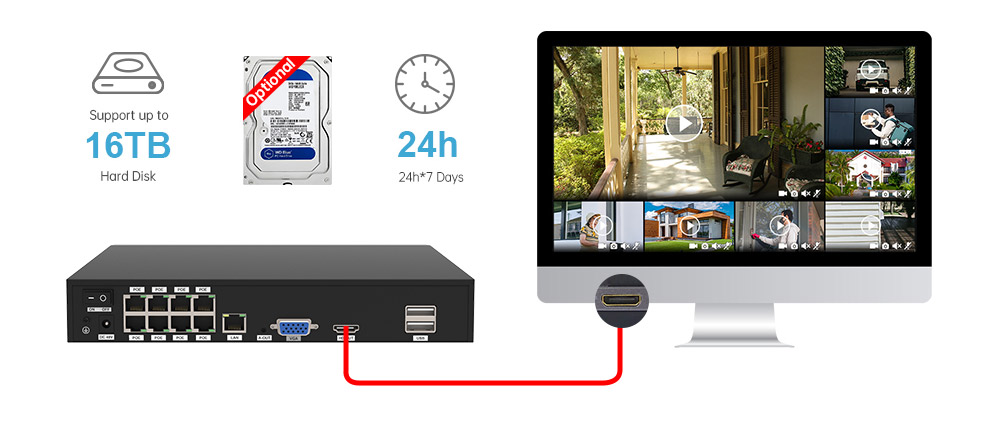

This network video recorder support up to 16TB hard drive (not included) for 24/7 continuous recording. You’ll never miss a moment. Scheduled or motion-triggered recording option allows you to record even longer.

More Efficient Streaming for Optimum Viewing Experience

It supports video stream compression H.264+ Codec, which has advantages of storage and bandwidth savings with greater efficiency and achieves high quality video preview and recording in low-bit rate.

· Supports ultra-long continuous 24/7 recording (supports external hard drive up to 16TB).
· The table below shows how long the Foscam NVR can record 24/7 under different HDD capacities for reference.

Power over Ethernet

Power over Ethernet (PoE camera) for easy installation, no matter day or night, rain or shine.

Tech Specs Table

ITEMS		FNA108HE
Video Input	IP Video Input	8 Channels UHD IP camera input
Video Output	HDMI Output	1×HDMI
	VGA Output	1×VGA
	Display Resolution	3840x2160，2560x1440,1920x1080,1440x900,1280x1024,1280x800,1280x720,1024x768
Recording	Recording Resolution	Up to 8MP per channel ( 8ch@8MP )
	Record Mode	Time Scheduled / Motion Detect
	Compression Format	H.264/H.264+
Playback	Synchronous Playback	8 channels synchronous video playback
	Playback Mode	Pause / Stop / Slow / Fast/ Frame Play
Network	POE Standard	POE Standard
	Network Protocol	IP, TCP, UDP, SMTP, DHCP, RTSP
HDD	Capacity	Up to 16TB
External Interface	Network Interface	1× 10/100 Mbps RJ45 port
	USB Interface	2× USB2.0 interface for mouse and external storage
	Button	1× Power on/off button,1× Reset button
System Requirements	Operating System	Microsoft Windows (Foscam VMS), MacOS (Foscam VMS), Android (Foscam app), iOS (Foscam app)
	Smart Phone	iOS, Android, 3G/4G/5G Smartphones
Language	Language	20 languages
Physical and Environmental	Power Supply	DC 48V/2A
	Dimension(LxWxH)	255mm238mm50mm
	Net Weight (g)	880g
	Operating Temperature	0°C ~ 50°C (32°F ~ 122°F)
	Operating Humidity	20% ~ 85% non-condensing
	Storage Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
	Storage Humidity	0% ~ 90% non-condensing
