| ITEMS |
FNA216HE |
| Video Input |
IP Video Input |
16 Channels UHD IP camera input |
| Video Output |
HDMI Output |
1×HDMI |
| VGA Output |
1×VGA |
| Display Resolution |
3840x2160，2560x1440,1920x1080,1440x900,1280x1024,1280x800,1280x720,1024x768 |
| Recording |
Recording
Resolution |
Up to 8MP per channel ( 16ch@8MP ) |
| Record Mode |
Time Scheduled / Motion Detect |
Compression
Format |
H.264/H.264+ |
| Playback |
Synchronous
Playback |
16 channels synchronous video playback |
| Playback Mode |
Pause / Stop / Slow / Fast/ Frame Play |
| Network |
Network Protocol |
IP,TCP,UDP,SMTP,DHCP,RTSP |
| POE Standard |
IEEE 802.3at/af |
| HDD |
Capacity |
Up to 16TB *2 |
| External Interface |
Network Interface |
1× 10/100/1000 Mbps RJ45 port |
| USB Interface |
2× USB2.0 interface for mouse and external storage |
| Button |
1× Reset button |
| System Requirements |
Operating System |
Microsoft Windows (Foscam VMS), Mac OS (Foscam VMS), Android (Foscam app), iOS (Foscam app)
|
| Smart Phone |
iOS,Android,3G/4G/5G Smartphones |
| Language |
20 languages |
| Physical and Environmental |
Power Supply |
DC 52V/4A |

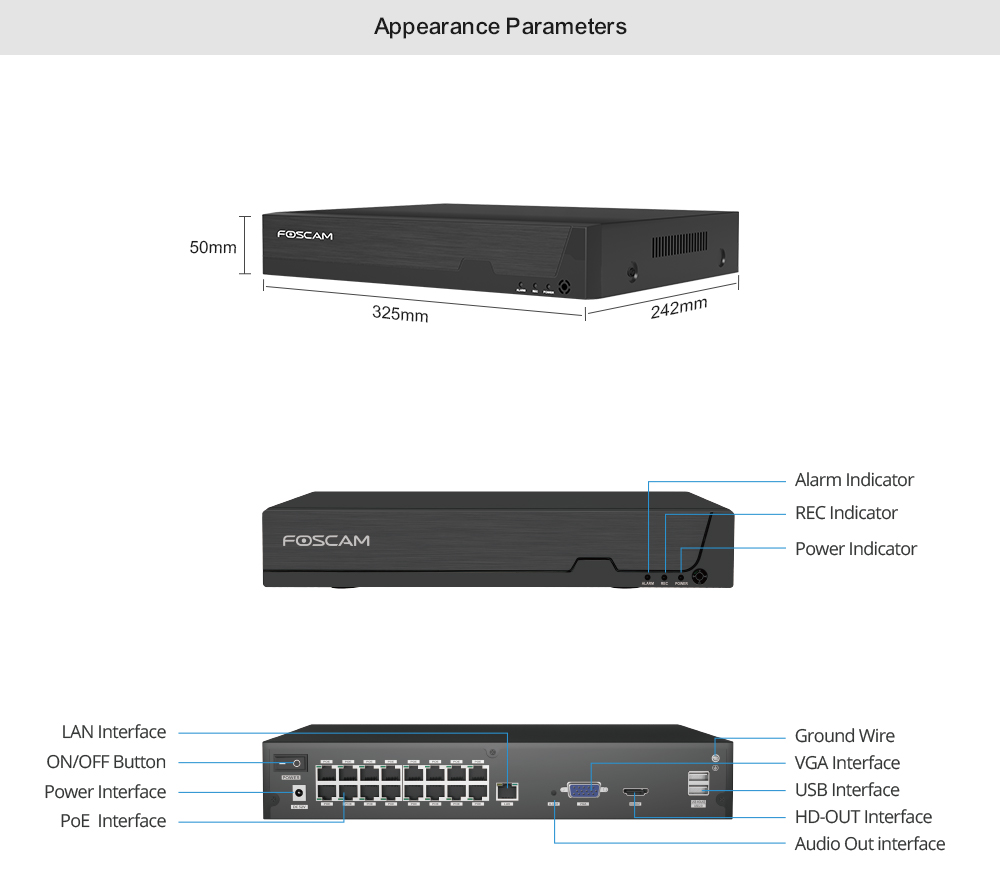

| Dimension(LxWxH) |
325mm*242mm*50mm |
| Net Weight (g) |
1319g |
| Operating Temperature |
0°C ~ 50°C (32°F ~ 122°F) |
| Operating Humidity |
20% ~ 85% non-condensing |
| Storage Temperature |
-20°C ~ 60°C (-4°F ~ 140°F) |
| Storage Humidity |
0% ~ 90% non-condensing |
